Formed in 1973, Sealing Corporation has evolved into a diversified Sealing Technology Company and now services a multitude of industries worldwide. To expand its market share, Sealing Corporation has contracted globally with several experienced and competent distributors and has entered into various marketing collaborations with well known international Sealing Technology Leaders.
Self Locating Gaskets for Gas Turbines
The SELF LOCATOR gasket is a complete stainless steel containment of a sealing element offering a true compression seal. The patented design gives you long term reliability without flange welding and eliminates misalignment on installation. Due to its universal sizing, one gasket fits ALL FLANGE PRESSURE CLASSES, eliminating the chance of incorrect gasket selection. The most important feature of the gasket is the high unit load generated by the narrow sealing area provides a considerably higher flange clamping pressure and a better seal at a lower clamping force. The standard gasket material is 304 SS, with two (2) tracks of Flexible Graphite sealing elements.

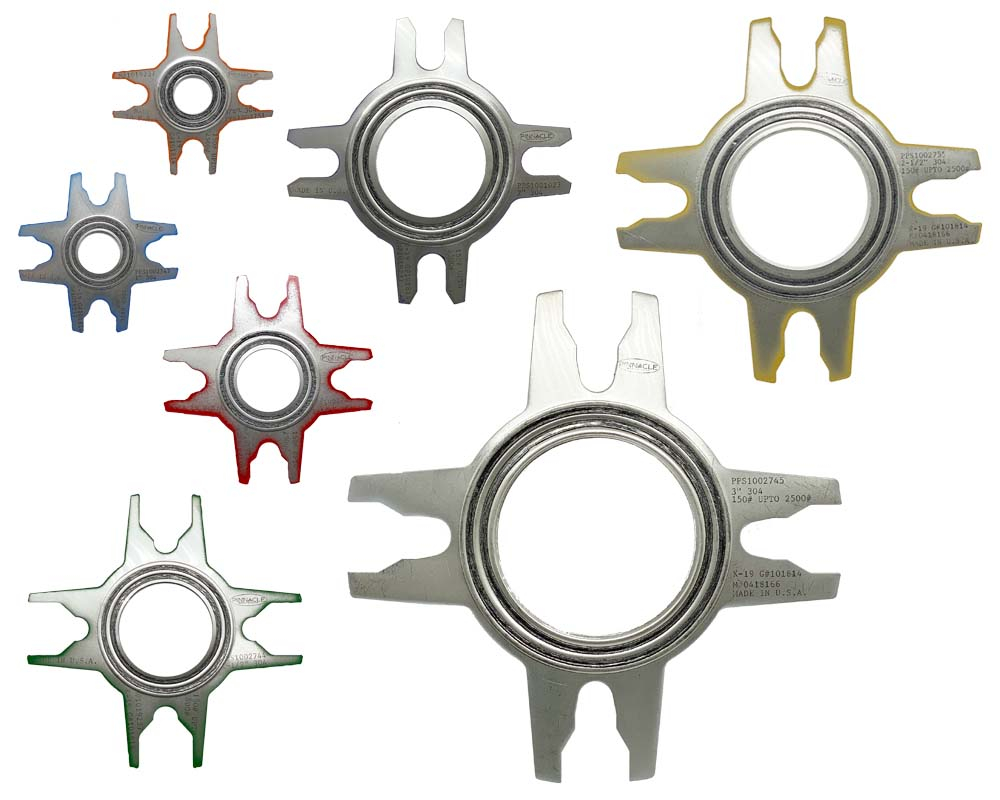

High Visibility Coating
Pinnacle Parts has enhanced the standard Flexitallic / Selco SELF LOCATOR gasket with the addition of a high visibility coating on the visible edge of the gasket frame. This coating is color coded for rapid identification of size and model saving your support team time and money.
Selco Seal SELF LOCATOR gaskets are available in a variety of sizes in original format or with the high visibility coating upgrade.
| Size | OEM Part # | Color |
|---|---|---|
| 3/4″ | PPS1002751K | Orange |
| 1″ | PPS1002747K | Blue |
| 1 1/4″ | PPS1002743K | Red |
| 1 1/2″ | PPS1002744K | Green |
| 2″ | PPS1001023K | Purple |
| 2 1/2″ | PPS1002755K | Gold |
| 3″ | PPS1002745K | White |
| Color Coated Gaskets | |
| Standard Gaskets |
CGI and ZG
Pinnacle Parts and Service Corporation is committed to delivering high-quality products.
That’s why we proudly distribute Flexitallic’s CGI, ZG, and Flex SL gaskets, which are
renowned for their reliability and performance.
CGI (Compressed Graphite Laminated) Gaskets
CGI gaskets are made from layers of compressed graphite, which provide excellent sealing
properties. They are also known for their high thermal and chemical resistance, making them
suitable for various industrial applications.
ZG (Zinc Gaskets)
ZG gaskets, or Zinc gaskets, are typically made with a zinc-based material, often used for
sealing applications where corrosion resistance is critical. They may also refer to gaskets
that utilize zinc in their composition to enhance durability.
The Flex SL gasket
A specialized sealing solution designed for various applications, particularly in industries
where flexibility and durability are essential. The most important feature of the gasket is the
high unit load generated by the narrow sealing area provides a considerably higher flange
clamping pressure and a better seal at a lower clamping force.
